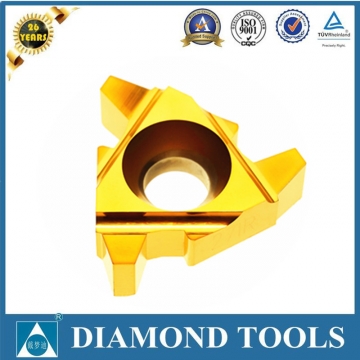

22IR 5.0 TR Internal threaded insert carbide

(0) 添加產品評論
Minimum Order Quantity
FOB Price R0.0 / Piece
數量:
庫存 (全部: 20000 件數.)
聯系客服
所有貨物價格都請參照最新價格
Specifications
產品細節

22IR 5.0 TR Internal threaded insert carbide

?

1.?Full?profile?design?ensures?the?high?precision?of?threads

2.?Smooth?rake?face?makes?the?chip?removal?easier

3.?Uniform?horning?cutting?edge?ensures?the?insert?small?cutting?force

4.?BALINIT??coatings?(Oerlikon?Balzers)?allows?long?tool?life?and?improves?the?performance

?Specification??????????????????????????????????????????????????????????????

insert carbide D Pitch Designation Dimension
TPI Right Hand Left Hand L X Y
TR 30° 3/8" 1.5 16IR 1.5TR 16IL 1.5TR 16 1.0 1.1
2.0 16IR 2.0TR 16IL 2.0TR 1.1 1.3
3.0 16IR 3.0TR 16IL 3.0TR 1.3 1.5
1/2" 4.0 22IR 4.0TR 22IL 4.0TR 22 1.7 1.9
5.0 22IR 5.0TR 22IL 5.0TR 2.1 2.5
5/8" 6.0 27IR 6.0TR 27IL 6.0TR 27 2.2 2.6
7.0 27IR 7.0TR 27IL 7.0TR 2.3 2.7

??Remark:?If you can't search the types/models you are looking for, please contact us directly.

?Strict Production Flow??????????????????????????????????????????????

?Toolholder Recommended????????????????????????????????????????

?

?Application????????????????????????????????????????????????????????????????

    • <span id="dcfwa"><option id="dcfwa"></option></span>
      <rp id="dcfwa"><strong id="dcfwa"></strong></rp>
      Coating ?TIALN ?TIN
      Material processed M30 (m/min) P30 (m/min)
      ?Low carbon steel or medium-carbon steel 80-130 80-140
      ?High carbon steel
